Advantech Control Cabinet PC
for Space-saving Application
  Advantech's new ultra-slim low power fan-less touch panel PCs in a range of size from 6.5” , 10.4”, 12.1” to 15” use the latest Intel® Celeron processor and have an easy to read diagnostics display. With true flat IP65 certified front panel features dual GbE LAN for redundancy, two serial ports, and three USB ports to make it easier to satisfy various simple industrial applications.

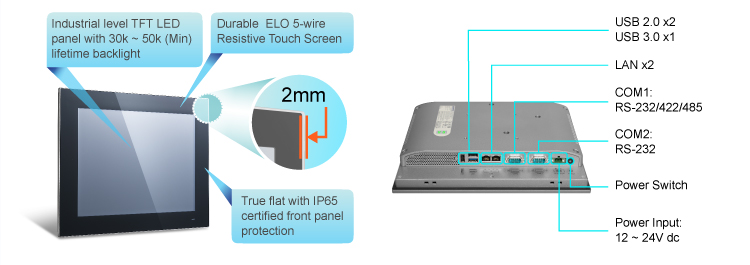

Industrial-grade Panel PC


E-eye Monitoring for Easier maintenance (PPC-3100S/ 3120S/ 3150S)

E-eyes status table
Code Error Description
FF No error
E0 Main board start-up error
E1 Memory error
E2 Touch screen controller error
E3 LVDS transfer controller error
E4 USB internal detecting error
E5 Serial port internal loopback error
E6 LAN port controller error
E8 SATA storage connection error


Wide-range Applications


Environment Inspection
Equipment

Process Management

Automatic Machine

Product at a glance
  PPC-3060S PPC-3100S PPC-3120S PPC-3150S
CPU Intel® Celeron® N2807
(Dual core 1.58 GHz)
Intel® Celeron® N2930
(Quad core 1.83GHz)
Intel® Celeron® N2930
(Quad core 1.83GHz)
Intel® Celeron® N2930
(Quad core 1.83GHz)
LCD Display 6.5 TFT LCD 10.4˚ TFT LCD 12.1˚ TFT LCD 15˚ TFT LCD
Resolution Max. 640 x 480 800 x 600 800 x 600 1024 x 768
Brightness 700 400 500 400
Viewing Angle 160, 140 160 , 140 160 , 140 160 , 140
Contrast 600 700 700 700
Backlight Lifetime 50,000(Min.) 30,000(Min.) 30,000(Min.) 50,000(Min.)
