| Why Advantech's Edge AI Inference Computer? |
As GPU computing becomes prevailing in applications of machine vision, 3D imaging, machine learning, big data analysis and artificial intelligence, more and more equipment builders and system integrators demand to install NVIDIA GPU cards in computers to utilize the high speed, parallel computing power.
Featured with strict validation to ensure thermal, and mechanical, electrical compatibility with GPU cards, plus industrial grade anti-vibration, high temperature operation capabilities, as well as modular and compact-sized design, Advantech Edge AI Inference Computer is perfect hardware platform for markets of industrial equipment manufacture, intelligent factory and smart city. |
|
|
|
| GPU-Supported Compatibility |
 |
Validated to ensure
compatibility
with GPU card |
|
| Industrial Reliability |
 |
Industrial design for
Anti-vibration,
Anti-dust,
and high-temperature Operation |
|
| Easy Deployment |
 |
Compact size
and easy
maintenance |
|
|
|
|
 |
Autonomous Vehicle Environment Sensing |
|
A renowned autonomous vehicle technology company uses MIC-7700 supporting GPU card,
with DVP-7640HE capture card to enable environment sensing application. |
 |
|
Compact and ruggedized MIC-7700Q, providing high stability platform that equipped with enough I/O and great flexibility for hardware expansion. |
|
|
DVP-7640HE 8-ch capture card could offload the CPU for compress image data and support enough channel for multi video input. |
|
|
With i-Module MIC-75G20, the system equipped with the ability to support GPU card and with high-performance Intel® 7th Generation Core i Desktop CPU for such complex computing system. |
|
|
|
|
|
|

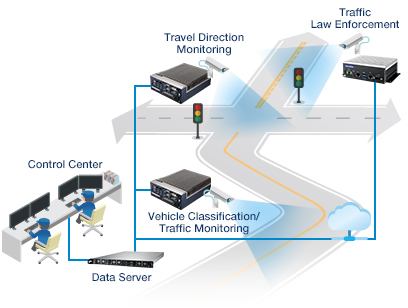

AI Traffic Monitoring in Smart Lights |
|
| An AI embedded system MIC-720AI is attached on the smart light pole to recognize people and vehicles. |
 |
|
Designed for industrial usage, based on high-performance NVIDIA Jetson Tegra X2 (TX2). |
|
|
Fanless, palm size, low power consumption and wide operating temperature |
|
|
Built-in Power of Ethernet (PoE) sourcing capability, ideal for use with IP/GigE camera. |
|
|
Abundant user-friendly SDK that allows easy developing for AI inference applications. |
|
|
|
|
|
|
|
Standard Solution |
|

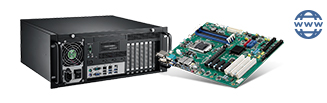

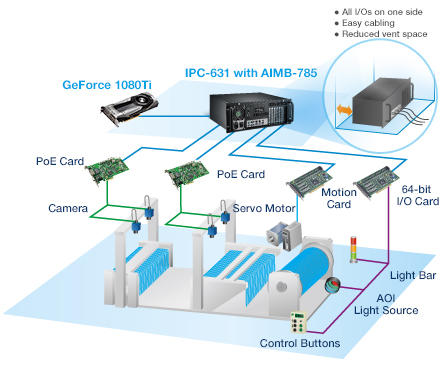

| IPC-631 + AIMB-786 |
|

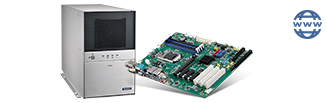

IPC-7130 + AIMB-786 |
 |
 |
| ● |
Compatible with RTX 2080(Ti)/2070/2060/,
GTX 1050(Ti)/1030 |
| ● |
Support up to Core i7 -8700, 64GB RAM |
| ● |
4U rack-mount, 350mm depth, all I/Os on the same side for easy maintenance |
| ● |
Up to 35°C op. temp., 0.5Grms op. vibration with GPU card |
| |
|
|
| ● |
Compatible with RTX 2080(Ti)/2070/2060/,
GTX 1050(Ti)/1030 |
| ● |
Support up to Core i7 -8700, 64GB RAM |
| ● |
Wall-mount, with self-diagnostics functions, quiet fan, dual hot-swap drive trays |
| ● |
Up to 35°C op. temp., 0.5Grms op. vibration with GPU card |
| |
|
|
|
| |
| IPC-7120 + AIMB-786
|
|
IPC-6025 + PCE-5129
|
 |
 |
| ● |
Compatible with GTX 1050(Ti)/1030 |
| ● |
Support up to Core i7 -8700, 64GB RAM |
| ● |
Wall-mount, compact size , all I/Os on the same side for easy maintenance |
| ● |
Up to 40°C op. temp., 0.5Grms op. vibration with GPU card |
| |
|
|
| ● |
Compatible with GTX 1050(Ti) /1030 |
| ● |
Support up to Core i7 -8700, 32GB RAM |
| ● |
Wall-mount, ultra-compact size, with self-diagnostics functions, quiet fan |
| ● |
Up to 40°C op. temp., 0.5Grms op. vibration with GPU card |
| |
|
|
|
| ACP-4020 + AIMB-786 |
 |
| |
|
| ● |
Compatible with RTX 2080(Ti)/ 2070/ 2060,
GTX 1050(Ti)/1030 |
| ● |
Support up to Core i7-8700, 64GB RAM |
| ● |
4U rack-mount, 350mm depth, with self-diagnostics functions, easy-maintain fan & filter |
| ● |
Up to 35°C op. temp., 0.5Grms op. vibration with GPU card |
| |
|
|
|
| |
|
Ruggedized, Modular Solution |
|
| MIC-7700 + MIC-75M20-B |
|
MIC-7700 + MIC-75G20 |
 |
 |
| ● |
Compatible with GTX 1050Ti, Tesla P4 |
| ● |
Support up to Core i7-7700T/i5-7500, 32GB RAM |
| ● |
Wall-mount, table-mount, compact size |
| ● |
Up to 50°C op. temp., 0.5Grms op. vibration with GPU card |
| |
|
|
| ● |
Compatible with RTX 2080(Ti)/2070/2060 and Titan V |
| ● |
Support up to Core i7-7700T/i5-7500, 32GB RAM |
| ● |
Wall-mount, table-mount, dual 24 VDC power inputs for system and GPU card |
| ● |
Up to 40°C op. temp., 0.5Grms op. vibration with GPU card |
| |
|
|
|
|
|
Ultra Ruggedized, Compact Solution |
|
| MIC-7200 |
 |
| |
|
| ● |
Powered by NVIDIA Jetson Tegra X2 |
| ● |
Support NVIDIA Pascal 256 CUDA cores |
| ● |
Fanless, palm size, lower power consumption and wide operating temperature |
| ● |
-20°C ~ +60°C op. temp., 2Grms op. vibration |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
Gen. Core™ i7 and up to 64GB memory for high-resolution image analysis.
