Super Speed
Advantech is pleased to announce the USB-4630, the world’s first USB 3.0 isolated hub. The USB-4630 provides the fastest data transmission between controller and connected units of any isolation protection devices. Offering up to 5Gbps, with four ports, it is 416 times faster than a USB 2.0 isolated hub, and provides ultra-high-speed transmission. Even when connected to USB 2.0 devices, it accelerates speed 40 times, up to 480Mbps. The USB-4630 brings ultra-high speeds to applications and industrial equipment testing, automotive manufacturing, and medical devices. |
|
|
 |
 |
| |
Isolation Protection
With its advanced isolation protection technology, USB-4630 saves you from ground loop worries. Moreover, it ensures data integrity in extreme electrically noisy environments, for instance, near an operating variable frequency motor, or near welding, or other large loads. Normally spikes between signal and ground line can be prevented by surge suppression. However, if the ground line rises beyond the limits of surge suppression, isolation allows the lines to float, maintaining proper ground and signal level on the local side. In this way, your data stream remains undisturbed, while the isolator simultaneously controls electrical flows. |
 |
|
|
 |

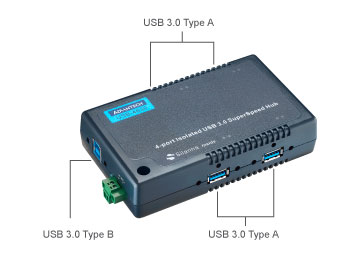

USB-4630
Features:
- 2,500 VDC voltage isolation for upstream ports
- Transfer Speed 5 Gbps shared by 4 x downstream USB 3.0 SuperSpeed ports
- Can be powered via a USB bus or 10 ~ 30 VDC external power source
- ESD protection up to ±8 kV (Level 3)
- Power status and downstream port speed LED indicators
Specifications:
- Load current external power 900mA max. per port. USB bus power 700mA max. per port.
- Dimensions 132 x 80 x 32 mm
- Operating Temperature 0 ~ 70˚C (32 ~ 158˚F)
|
|
|
 |
| |
