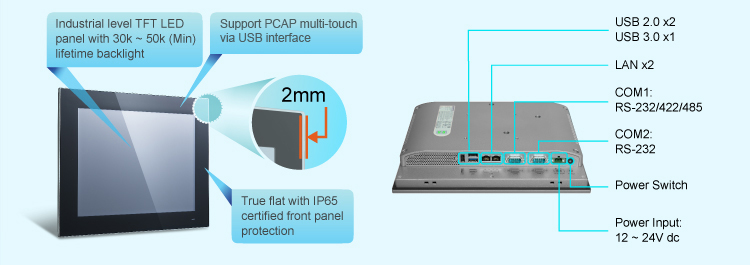

Advantech's Ultra-Slim Panel PCAdvantech's ultra-slim low power fanless touch panel PCs range in size from 6.5” to 21.5" and use an Intel® Celeron processor with an easy to read diagnostics display. With a true flat IP65 certified front panel and features such as dual GbE LAN for redundancy, two serial ports, and three USB ports make it easier to satisfy various simple industrial applications.
|
 |
|
|
|
 |
| |
 |
 |

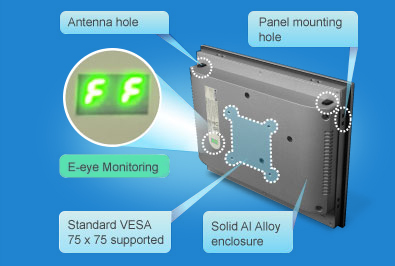

| E-eye Monitoring for Easier Maintenance |
|
| |
|
 |
| |
|
|
 |
 |
 |
 |
 |
| |
PPC-3060S |
PPC-3100S |
PPC-3120S |
PPC-3150S |
PPC-3210SW |
| CPU |
Intel® Celeron® N2807
(Dual core 1.58 GHz) |
Intel® Celeron® N2930
(Quad core 1.83GHz) |
Intel® Celeron® N2930
(Quad core 1.83GHz) |
Intel® Celeron® N2930
(Quad core 1.83GHz) |
Intel® Celeron® N2930
(Quad core 1.83GHz) |
| LCD Display |
6.5 TFT LCD |
10.4˚ TFT LCD |
12.1˚ TFT LCD |
15˚ TFT LCD |
21" TFT LCD |
| Touch type |
Resistive |
Resistive / PCAP |
Resistive |
Resistive |
PCAP |
| Resolution Max. |
640 x 480 |
800 x 600 / 1024 x 768 |
1024 x 768 |
1024 x 768 |
1920 x 1080 |
| Brightness |
700 |
400 /350 |
500 |
400 |
300 |
| Viewing Angle |
160, 140 |
160, 140/176, 176 |
160 , 140 |
160 , 140 |
160 , 140 |
| Contrast |
600 |
700/1200 |
700 |
700 |
700 |
| Backlight Lifetime |
50,000(Min.) |
30,000(Min.) |
30,000(Min.) |
50,000(Min.) |
50,000(Min.) |
|
| |
|
 |
|
 |
|
